| Business Type | Manufacturer, Exporter, Supplier, Retailer |

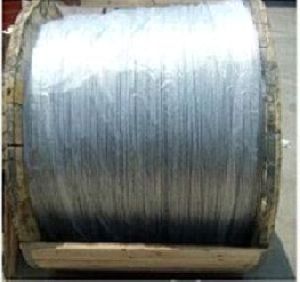

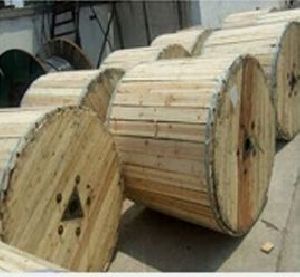

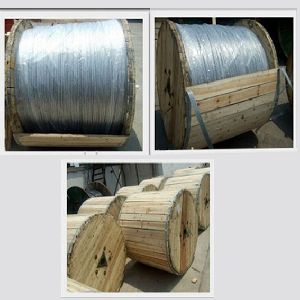

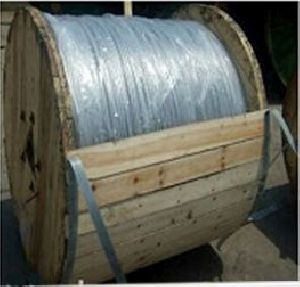

We provide All Aluminium Conductor [AAC] of international quality to the customers across the globe. The All Aluminium Conductor [AAC] that we offer to the customers is manufactured using high grade raw material that makes it highly demanding in the national as well as international markets.
Attributes
- High in strength
- Corrosion resistance
- Long lasting
- Capable of withstanding wind loads
Suitable For
- River crossings
- Transmission lines
- Other installations
Specifications
| CODE WORD | ALUMINIUM AREA (Sq mm) STRANDING & WIRE DIAMETER | OVERALL DIA (mm) (APPROX.) |
MASS (APPROX.) (Kg / Km) |
RESISTANCE AT 20 degC (Ohms / Km) (MAX) |
ULTIMATE BREAKING LOAD ( KN ) |
|||
| NOMINAL | SECTIONAL | CONDUCTOR | ||||||
| NO. | DIA (mm) | |||||||
| AS PER IS 398 (PART -1): 1996 | ||||||||
| GNAT | 25 | 26.85 | 7 | 2.21 | 6.63 | 74 | 1.1 | 4.52 |
| ANT | 50 | 52.83 | 7 | 3.1 | 9.3 | 145 | 0.55 | 8.25 |
| WASP | 100 | 106 | 7 | 4.39 | 13.17 | 290 | 0.28 | 15.96 |
| 19/3.18 mm | 150 | 150.9 | 19 | 3.18 | 15.9 | 415 | 0.19 | 23.28 |
| SPIDER | 240 | 237.6 | 19 | 3.99 | 19.95 | 654 | 0.12 | 35.74 |
| BUTTERFLY | 300 | 322.7 | 19 | 4.65 | 23.25 | 888 | 0.09 | 48.74 |
| AS PER IS 398 (PART -1): 1976 | ||||||||
| ROSE | 20.89 | 21`.12 | 7 | 1.96 | 5.88 | 58 | 1.362 | 385 |
| LADY BIRD | 42.33 | 42.80 | 7 | 2.79 | 8.37 | 117 | 0.6721 | 737 |
| FLY | 62.86 | 63.55 | 7 | 3.40 | 10.20 | 174 | 0.4526 | 1051 |
| BLUE BOTTLE | 72.84 | 73.65 | 7 | 3.66 | 10.95 | 201 | 0.3936 | 1203 |
| EARWIG | 77.70 | 78.55 | 7 | 3.78 | 11.34 | 215 | 0.3662 | 1272 |
| GRASS HOPPER | 83.13 | 84.05 | 7 | 3.91 | 11.73 | 230 | 0.3422 | 1356 |
| CLEGG | 94.56 | 95.60 | 7 | 4.17 | 12.51 | 261 | 0.3009 | 1523 |
| CATERPILLAR | 183.00 | 186.00 | 19 | 3.53 | 17.65 | 511 | 0.1555 | 2985 |
| CHAFFER | 209.90 | 213.20 | 19 | 3.78 | 18.90 | 586 | 0.1356 | 3381 |
| COCKROACH | 261.50 | 265.80 | 19 | 4.22 | 21.10 | 730 | 0.1088 | 4144 |
| MOTH | 367.20 | 373.10 | 19 | 5.00 | 25.00 | 1025 | 0.0774 | 5695 |
| LOCUST | 421.90 | 428.70 | 19 | 5.36 | 26.80 | 1176 | 0.0674 | 6516 |
| MAY BUG | 473.60 | 486.10 | 37 | 4.09 | 28.63 | 1343 | 0.0598 | 7289 |
| SCORPION | 518.40 | 529.80 | 37 | 4.27 | 29.89 | 1464 | 0.0548 | 7878 |
| IRIS | 33.45 | 33.81 | 7 | 2.48 | 7.44 | 92 | 0.8506 | 582 |
| PANSY | 42.02 | 42.49 | 7 | 2.78 | 8.34 | 116 | 0.6770 | 730 |
