Aluminium TIG Welding Wire

Aluminium TIG Welding Wire
Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler

Preferred Buyer From

Location Worldwide

Esteemed customers can easily avail from us Aluminium TIG Welding Wire that is delivered after packing them in appropriate cartons. The Aluminium TIG Welding Wire that we offer is perfectly used in Ship Building, Metal Works, Automobile Industry, Aero Space and various other industries. We, with our dedicated efforts have marked our stand amidst the prominent Aluminium TIG Welding Wire Manufacturers, Exporters and Suppliers.

Qualities

  • High efficiency
  • Specially designed
  • Resistance from corrosion
  • High ductility



Fabricated Using

  • Aluminium
  • Aluminium Alloy


Pakaging

  • In Cartons (in straight lengths of 500 mm ± 10 mm & 1000 mm ± 10 mm).



Stage Wise Packing Images – Aluminium Tig Wire [Visualize such Images under Product Packing Images]

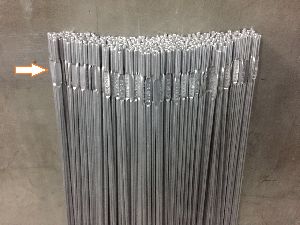

  • Stage 1 – TIG Wire in 1000mm cut length duly embossed with grade thereon

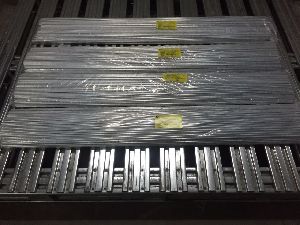

  • Stage 2 – 10 Kgs TIG Wire packed in thick quality polyethylene tube with specification sticker

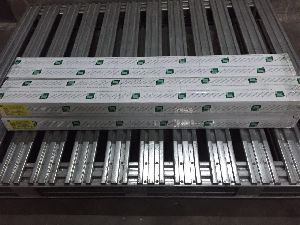

  • Stage 3 – Poly packed material packed in individual carton with  specification sticker pasted thereon
Read More...


Chemical Composition

Type Chemical Composition for MIG Welding Wire & TIG Welding Wire AWS A5.10
Si Fe Cu Mn Zn Al Mg Cr
G1B 0.25 max 0.40 max 0.05 - 0.20 0.05 max .10 max 99 min - - ER1100
NG-21 4.5 - 6.0 0.80 max 0.30 max 0.05 max .10 max Rest .05 max - ER4043
NG-2 11.0-13.0 0.80 max 0.30 max 0.15 max .20 max Rest .10 max - ER4047
NG-6 0.25 max 0.40 max 0.10 max 0.05-0.20 .10 max Rest 4.5 - 5.5 .05 - .20 ER5356

Chemical Composition

Type Chemical Composition for TIG Welding Wire AWS A5.10
Si Fe Cu Mn Zn Al Mg Cr
G1B 0.25 max 0.40 max 0.05 - 0.20 0.05 max .10 max 99 min - - ER1100
NG-21 4.5 - 6.0 0.80 max 0.30 max 0.05 max .10 max Rest .05 max - ER4043
NG-2 11.0-13.0 0.80 max 0.30 max 0.15 max .20 max Rest .10 max - ER4047
NG-6 0.25 max 0.40 max 0.10 max 0.05-0.20 .10 max Rest 4.5 - 5.5 .05 - .20 ER5356

Specifications

Form of supply Wire / Rod Diameter
(mm)
Tolerance on Diameter
(mm)
Net Weight

(Kg.)
On Plastic Spools (for MIG)
ER 1100 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4043 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4047 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 5356 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
In Cartons ( in straight lengths of 500 mm ± 10 mm & 1000 mm ± 10 mm ) (for TIG)
ER 1100 , 4043 ,
4047, 5356
1.60 , 2.40 , 3.20 ,
4.00 , 5.00 , 6.00
± 0.05
± 0.10
5/10 kg
10 kg

Specifications

Form of supply Wire / Rod Diameter (mm) Tolerance on Diameter (mm) Net Weight (Kg.)
In Cartons ( in straight lengths of 500 mm ± 10 mm &1000 mm ± 10 mm ) (for TIG)
ER 1100 , 4043 , 4047, 5356 1.60 , 2.40 , 3.20 , 4.00 , 5.00 , 6.00 ± 0.05 ± 0.10 5/10 kg 10 kg
