Aluminium MIG Welding Wire

Home › Products › Aluminium Welding Wire › Aluminium MIG Welding Wire

Aluminium MIG Welding Wire
Aluminium MIG Welding Wire
4-Stage Wise Packing Images Aluminium Mig Wire 01
4-Stage Wise Packing Images Aluminium Mig Wire 02
4-Stage Wise Packing Images Aluminium Mig Wire 03
Aluminium MIG Welding Wire
Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler

Preferred Buyer From

Location Worldwide

We are into offering premium quality Aluminium MIG Welding Wire that is ideal to be used in Ship Building, Metal Works, Automobile Industry, Aero Space and various other industries. We have succeeded in marking our stand amidst the trustworthy Aluminium MIG Welding Wire Manufacturers, Exporters and Suppliers.

Attributes

  • Specially designed
  • High efficiency
  • Resistance from corrosion
  • High ductility


Fabricated Using

  • Aluminium
  • Aluminium Alloy


Packaging

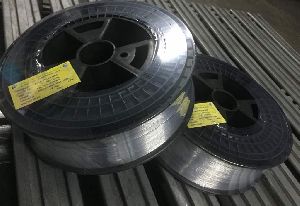

  • On plastic spools

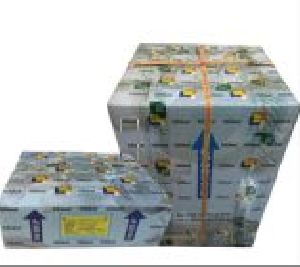

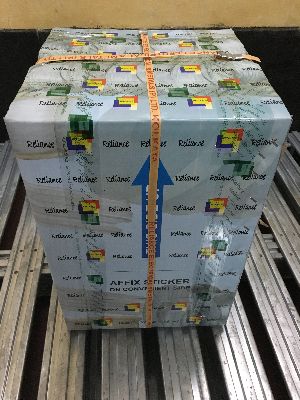

Stage Wise Packing Images – Aluminium Mig Wire [Visualize such Images under Product Packing Images]

  • Stage 1 – Poly Stretch Sheet over exposed material with oxygen absorber put inside and entire spool is further enveloped in heat shrink wrapper
  • Stage 2 – Such spool further packed in individual carton & strapped with BOPP Tape
  • Stage3 – Such04 cartons packed in master carton well secured by BOPP Tape & cross Nylon Strappings
Read More...

Request to Call Send Enquiry

Chemical Composition



Type Chemical Composition for MIG Welding Wire & TIG Welding Wire AWS A5.10
Si Fe Cu Mn Zn Al Mg Cr
G1B 0.25 max 0.40 max 0.05 - 0.20 0.05 max .10 max 99 min - - ER1100
NG-21 4.5 - 6.0 0.80 max 0.30 max 0.05 max .10 max Rest .05 max - ER4043
NG-2 11.0-13.0 0.80 max 0.30 max 0.15 max .20 max Rest .10 max - ER4047
NG-6 0.25 max 0.40 max 0.10 max 0.05-0.20 .10 max Rest 4.5 - 5.5 .05 - .20 ER5356

Chemical Composition

Type Chemical Composition for MIG Welding Wire AWS A5.10
Si Fe Cu Mn Zn Al Mg Cr
G1B 0.25 max 0.40 max 0.05 - 0.20 0.05 max .10 max 99 min - - ER1100
NG-21 4.5 - 6.0 0.80 max 0.30 max 0.05 max .10 max Rest .05 max - ER4043
NG-2 11.0-13.0 0.80 max 0.30 max 0.15 max .20 max Rest .10 max - ER4047
NG-6 0.25 max 0.40 max 0.10 max 0.05-0.20 .10 max Rest 4.5 - 5.5 .05 - .20 ER5356

Specifications

Form of supply Wire / Rod Diameter (mm) Tolerance on Diameter (mm) Net Weight (Kg.)
On Plastic Spools (for MIG)
ER 1100 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4043 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4047 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 5356 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
In Cartons ( in straight lengths of 500 mm ± 10 mm & 1000 mm ± 10 mm ) (for TIG)
ER 1100, 4043, 4047, 5356 1.60, 2.40, 3.20,
4.00 , 5.00 , 6.00		 ± 0.05
± 0.10		 5/10 kg
10 kg

Specifications

Form of supply Wire / Rod Diameter (mm) Tolerance on Diameter (mm) Net Weight (Kg.)
On Plastic Spools (for MIG)
ER 1100 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4043 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 4047 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
ER 5356 1.20 , 1.60 , 2.40 + 0.01 , - 0.04 7 .50 kg ± 5%
